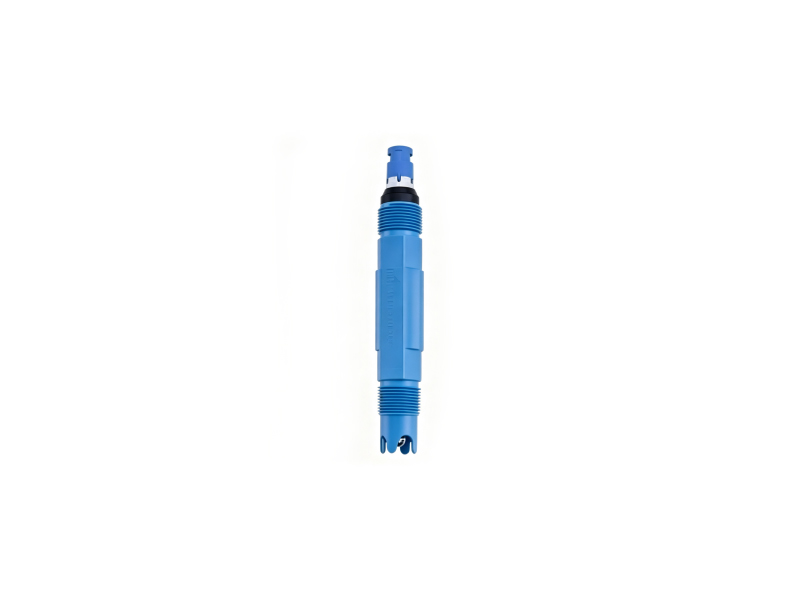

The pH online analyzer consists of a pH electrode, a transmitter, and a cable. It employs a digital pH electrode that is robust and durable, capable of stable pH measurements in harsh conditions. It is suitable for applications in the mining industry as well as water and wastewater treatment, reliably monitoring:
◆ Flotation Process
◆ Leaching Process
◆ Neutralization Process
◆ Inlet and Outlet Water
pH Online Analyzer Technical Parameters:
| Main Parameters | |
| Measurement Principle | Glass electrode, dual-chamber reference system, potassium nitrate salt bridge electrolyte, and PTFE membrane |
| Features | Electrode toxicity resistance, gel electrode pollution resistance, process connection NPT 3/4" |
| Measurement Range | pH 0...14 |
| Material | PPS、Glass、PTFE |
| Process Temperature | -10..110℃ |
| Process Pressure | Maximum 10 bar |
| Temperature Sensor | Pt1000 |
| Electrode Protection Level | IP68 |
| Transmitter Output | Supported 0/4...20mA、HART、Modbus RS485/TCP |
| Transmitter Power Supply | 24VDC or 100...230VAC (50/60Hz) |
| Installation Method | Immersion installation, flow-through installation |

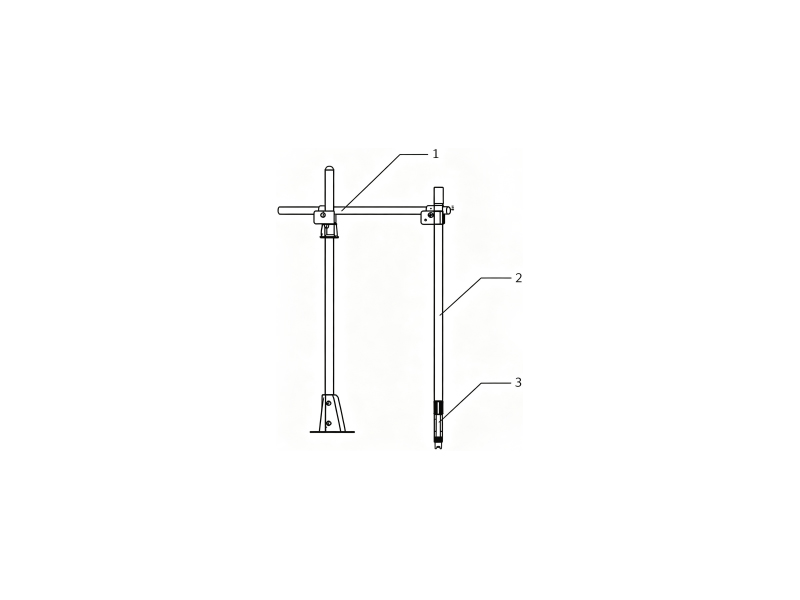

| Optional Configurations | Immersion installation bracket, automatic flushing device, pH calibration solution |
Ordering Instructions:
| Name | Order Description |
| pH Online Analyzer | When placing an order, please specify: Medium, pH, Installation Method, Power Supply, Signal, Optional Medium: Gold ore flotation pre-stirring tank slurry; pH: 9-10; Immersion installation; Power supply: DC24VDC; Signal: 4...20mA; Includes immersion installation bracket; |
