Sand Making Equipment
VSI Hydraulic Vertical Shaft Impactor (Sand Maker)

Baisheng VSI Hydraulic Vertical Shaft Impactor (Sand Maker) features a four-port impeller structure and a special sealing structure. Combined with an automatic thin oil lubrication system, it effectively improves its production efficiency and service life. The VSI sand making machine can quickly switch between 'sand making' and 'shaping' modes, achieving dual-purpose functionality. Its product particle shape is excellent, with a large throughput. Equipped with an intelligent control system, it helps large sand fields gradually move towards large-scale and centralized production to meet national requirements for environmental protection and production capacity.

Send Inquiry Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
//www.bscrusher.com/uploadfiles/38.60.157.215/webid2564/source/202609/93220178833503710.jpg

Product Advantages

High efficiency and good particle shape: Optimized impeller design improves efficiency by 30% and reduces wear by 40%.

Low maintenance cost: Hydraulic device for automatic cover opening reduces maintenance costs and is easy to maintain.

Convenient operation: Easy installation, simple maintenance,and user-friendly operation. Automatic monitoring: Automatic monitoring, safe and reliable, thin oil lubrication, automatic maintenance.

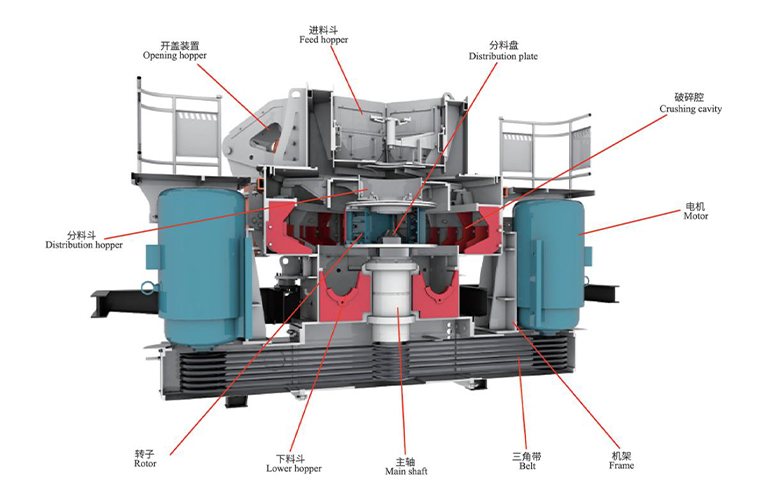

Structural Drawing




Technical Parameters

ModelSand makingShapingSand makingShapingSpeed of Main Shaft (r/min)Motor Power (kW)Dimensions (mm)Weight (t)
Max. Feeding Size (mm)Throughput Capacity (t/h)
VSI6X13805060601-643721-1150800-1100400×26100×2900×340029.5
VSI6X12635060454-486545-872900-1200315×25700×2980×419024.2
VSI6X11504555344-368413-6631000-1300250×25500×2750×395019.7
VSI5X11454550250-360500-6401100-1310220×25000×2790×332019
VSI5X95324045180-280350-5401300-1510160×24560×2600×290016
VSI5X85223540120-190240-3801500-1700110×24140×2500×270011
VSI5X7615303570-140150-2801700-190075×24100×2330×23009
VSI11404550220-260450-5201180-1310200×25000×2700×330025.6
VSI95264045150-190300-3801360-1510132×24560×2450×278015
VSI85183540100-130200-2601520-169090×24140×2280×242510.3
VSI7611303560-90120-1801700-189055×23700×2150×210011.8
