Crushing Equipment

JC Jaw Crusher

Baisheng JC Jaw Crusher is used for coarse and medium crushing operations. This machine integrates the world's top crushing technology and manufacturing processes, featuring unique advantages in structural design, working performance, service life, and equipment maintenance, making it the preferred choice for efficient crushing of hard and highly corrosive materials, Currently, highways, railways, airport runways, mining, building materials, metallurgy, and chemical engineering.

Send Inquiry Now

//www.bscrusher.com/uploadfiles/38.60.157.215/webid2564/source/202609/3666117895469911.jpg

Product Advantages

It adopts the currently most popular V-shaped crushing chamber.

It uses a new type of tooth-shaped jaw die to increase output and extend the maintenance cycle of wear parts.

The integral cast steel bearing housing can fully match with the frame, while greatly enhancing the radial strength of the bearing housing and reducing the maintenance costs of the equipment.

A more reasonable design of dynamic parameters results in a larger effective stroke at the bottom of the crushing chamber.

Higher safety and reliability.

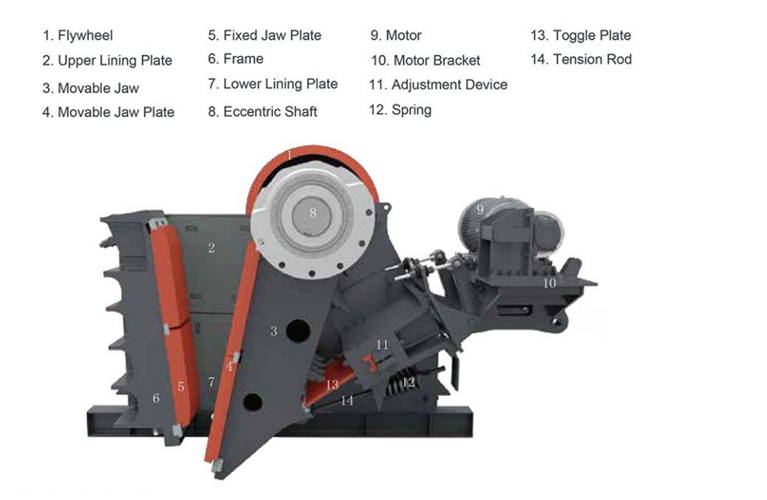

Structural Drawing

JC Structural Drawing-1.jpg

Technical Parameters

Parameters / Model	JC80	JC96	JC106	JC116	JC120	JC125	JC130	JC150	JC160	JC200
Width of Feed opening (mm)	800	930	1060	1100	1200	1250	1400	1400	1600	2000
Length of Feed opening (mm)	510	580	700	850	870	950	1070	1200	1200	1500
Motor power (kW)	75	90	110	132	160	160	200	220	250	400
Rotational Speed (rpm)	350	330	280	230	230	220	220	220	220	200
Basic Crusher weight (t)	7.67	9.759	14.35	25.8	26	37.97	48.25	51.2	76.5(71.3)	121.51
Gross Crusher weight (with options) (t)	9.52	11.87	17.05	29.5	29.3	43.91	55.6	61.43	88.5(83.3)	137.16

Product Size (mm)	Close Side Setting (mm)	(t/h)	(t/h)	(t/h)	(t/h)	(t/h)	(t/h)	(t/h)	(t/h)	(t/h)	(t/h)
0-60	40	65-85
0-75	50	80-95
0-90	60	95-125	120-155
0-105	70	115-150	140-180	155-200	190-250	190-250
0-120	80	130-170	160-210	175-230	210-275	210-275
0-135	90	150-195	180-235	200-260	235-305	235-305
0-150	100	165-215	200-260	220-290	255-330	255-330	290-380
0-185	125	210-275	250-325	280-365	310-405	310-405	350-455	385-500	385-500
0-225	150	250-325	300-390	335-435	370-480	370-480	410-535	455-590	455-590	520-575
0-260	175	290-380	350-455	390-510	425-550	425-550	470-610	520-675	520-675	595-775	760-990
0-300	200				480-625	480-625	530-690	590-765	590-765	675-880	855-1110
0-340	225						590-770	655-850	655-850	750-975	945-1230
0-375	250						650-845	725-945	725-945	825-1070	1040-1350
0-410	275									900-1170	1130-1470
0-450	300									980-1275	1225-1590
