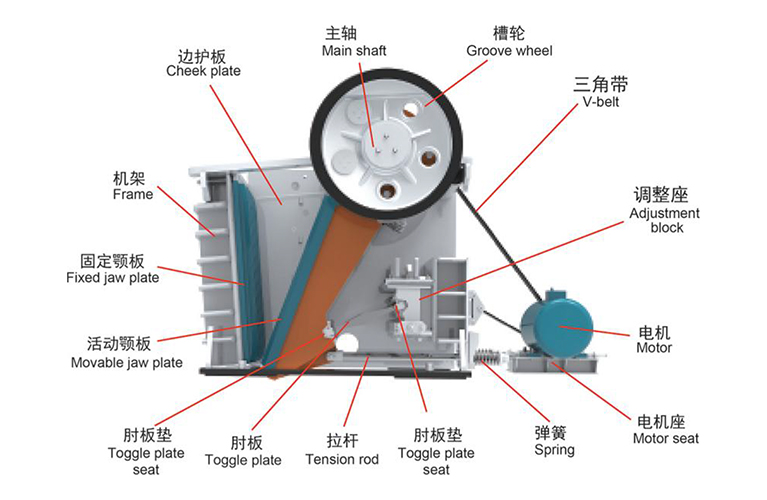

Baisheng PE jaw crusher constantly as primary crushing, which is widely used in different stones processing line and mining crushing plant. It imitates animal two jaw movement, it press, twist and grind the material in chamber through the fixed jaw plate and movable jaw plate closing and opening movement. It widely applied in mining metallurgy, construction, highway, railway, water conservancy, chemical and other industries, for different stones and big materials medium size crushing. PE jaw crusher feeds in big size, suitable for rough breaking or primary crushing. PEX jaw crusher feeds for a smaller size and has a smaller discharge opening, suitable for secondary crushing.
Moveable jaw assembly adopts high quality casting steel, heavy eccentric shaft adopts forging steel processing, the machine with transcendental stability.
Comparing with the same size jaw crusher, we adopt more durable eccentric shaft bearing, so the bearing capacity is big.
While guarantee the performance improvement, we simplify the machine structure. Easy operation and maintenance, the downtime is greatly reduced.

| Model | Feed opening size (mm) | Max. feeding size (mm) | Adjustable range of discharge opening (mm) | Capacity (t/h) | Electric motor power (kw) | Weight (t) | Dimension (mm) |
| PE150×250 | 150×250 | 125 | 10-40 | 1-5 | 5.5 | 0.81 | 875×758×850 |
| PE250×400 | 250×400 | 210 | 20-60 | 5-20 | 15 | 2.8 | 1450×1315×1296 |
| PE400×600 | 400×600 | 340 | 40-100 | 16-65 | 30 | 6.5 | 1565×1732×1586 |
| PE500×750 | 500×750 | 425 | 50-100 | 45-100 | 55 | 10.1 | 1892×2054×1853 |
| PE600×900 | 600×900 | 500 | 65-160 | 70-150 | 55-75 | 15.5 | 2520×1840×2303 |
| PE750×1060 | 750×1060 | 630 | 80-140 | 120-220 | 110 | 28 | 2450×2410×2860 |
| PE870×1060 | 870×1060 | 670 | 200-260 | 160-380 | 110 | 30.5 | 2733×2556×2800 |
| PE900×1200 | 900×1200 | 750 | 100-220 | 250-480 | 132 | 50 | 3335×3182×3430 |
| PE1000×1200 | 1000×1200 | 850 | 195-265 | 280-520 | 132 | 51 | 3435×3182×3430 |
| PE1200×1500 | 1200×1500 | 1020 | 150-350 | 500-800 | 220 | 100.9 | 4200×3732×3843 |
| PE1500×1800 | 1500×1800 | 1200 | 220-350 | 500-1000 | 355 | 122 | 7460×6235×4249 |
| PEX150×750 | 150×750 | 125 | 18-48 | 5-16 | 15 | 3.8 | 1200×1500×1200 |
| PEX250×750 | 250×750 | 210 | 25-60 | 15-35 | 22 | 5.1 | 1400×1300×1350 |
| PEX250×1000 | 250×1000 | 210 | 25-60 | 16-52 | 30-37 | 6.5 | 1530×1992×1380 |
| PEX250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37 | 7.7 | 1750×2192×1430 |
| PEX300×1300 | 300×1300 | 250 | 20-90 | 20-90 | 55 | 11 | 1900×2320×1724 |
