Product Advantages

The equipment features a high-strength integral cast frame, ensuring long service life and high reliability.

The hydraulic motor adjusts the discharge opening, allowing for remote, accurate, and continuous adjustment of the discharge size, making it convenient and efficient.

The crushing chamber adopts a high-efficiency lamination crushing principle, which improves crushing efficiency, reduces wear on vulnerable parts, and produces multi-angular materials with a high fine particle content.

The assembly surfaces of the crushing wall and the rolling wall are specially designed and precisely processed, making installation convenient and quick, with low replacement costs.

The adjustment sleeve locking uses multiple built-in small hydraulic cylinders for locking, providing uniform force and reliable locking.

The equipment employs labyrinth and spherical floating seals for multiple protections, ensuring more reliable sealing and good dust prevention.

The equipment features hydraulic insurance and cavity cleaning functions, making it safe, reliable, and more time-saving and labor-saving.

The drive system uses spiral bevel gear transmission, which has strong load capacity, smooth transmission, and low noise.

An automated intelligent control system and an integrated hydraulic lubrication system are adopted.

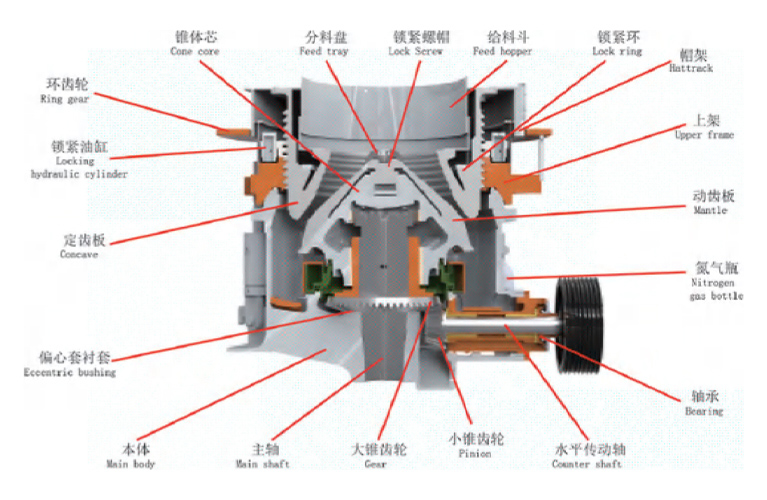

Structural Drawing

Technical Parameters

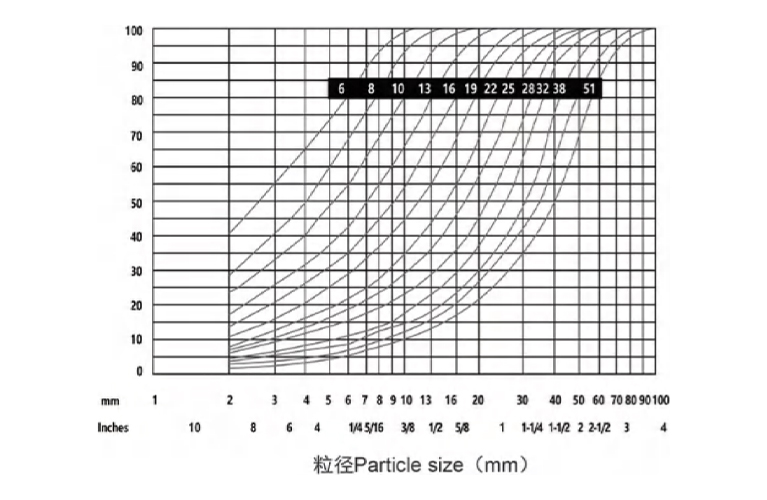

Product Size Curve
