Product Advantages

High production efficiency and excellent finished product particle shape: The perfect combination of crushing stroke, crushing speed, and crushing chamber type adapted to the laminated crushing principle greatly improves production capacity and work efficiency. With the same diameter of the large end of the movable cone, the output can be increased by about 35%-60%;

Constant discharge opening and constant output liner design: By improving the crushing chamber design and the constant output design of the liner, constant discharge opening control is achieved, ensuring product granularity while increasing the service life of the liner by 20%;

Automatic adjustment of discharge opening and automatic cavity cleaning function: The fully automatic control system provides multiple control modes for selection, which can continuously detect the actual load inside the crusher and improve crushing efficiency;

Intelligent control, accurate and convenient: The fully automatic control system offers multiple operating modes for users to choose from. It can continuously monitor the actual load inside the equipment and display various operating parameters in real time. For example, when the lining plate is worn to the point where it needs to be replaced and can no longer be used, the control panel will automatically display and alarm.

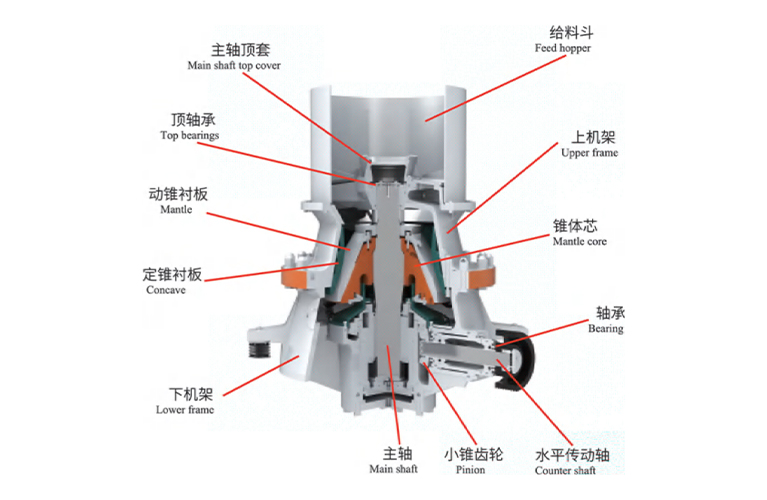

Structural Drawing

Technical Parameters

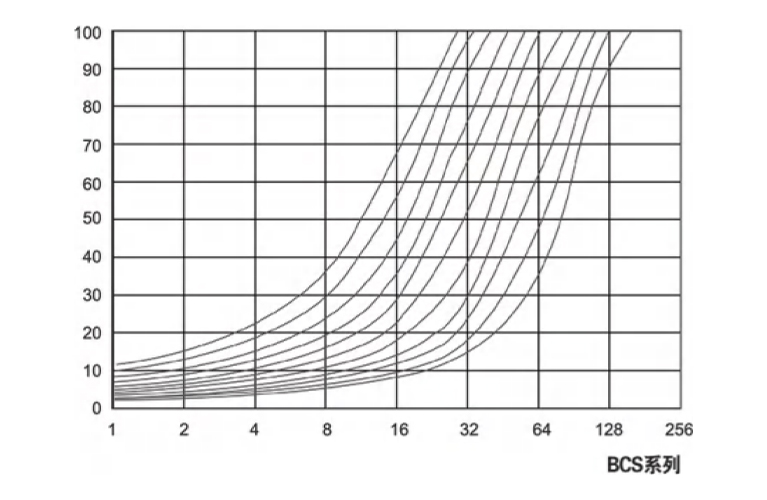

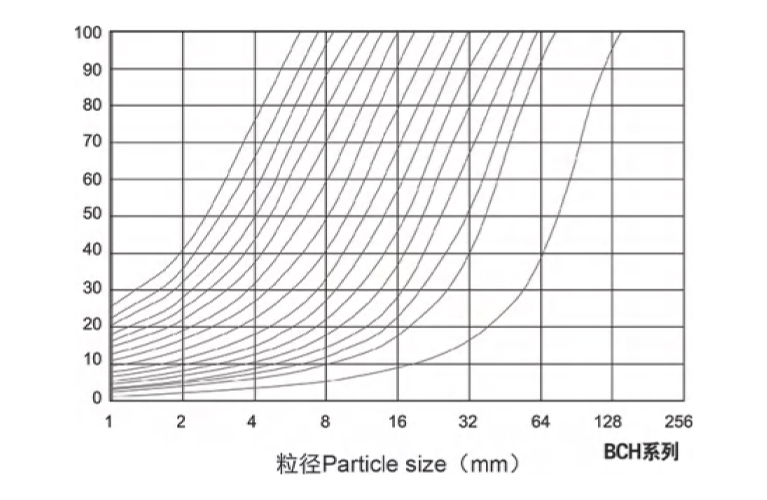

Product Size Curve
