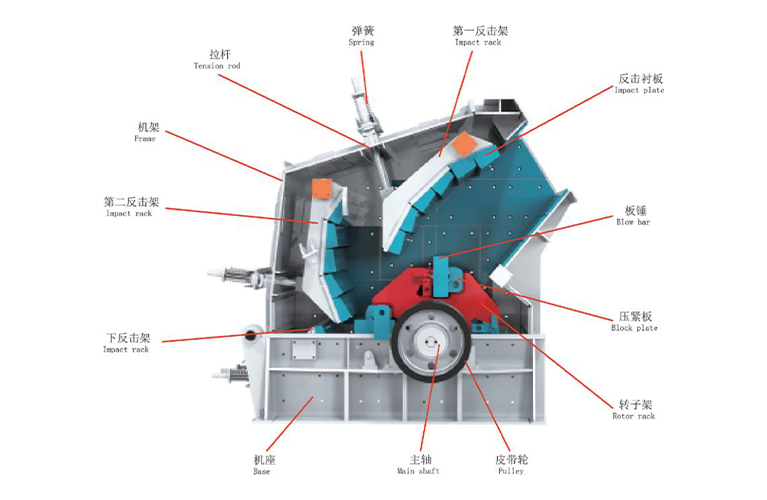

PF impact crusher is suitable for crushing a variety of soft and medium hardness ore. It's composed of machine frame, rotor and impact plate. The rotor has great rotational inertia and low energy consumption. High Chromium blow bar with anti-impact, anti-wear extend the service life of wearing parts. Widely used in the field of metallurgy, mining, cement, chemicals refractory, ceramics and other industrial sectors, as well as highway construction, water conservancy projects, building rubble, artificial sand processing and other fields.
PF Impact Crushers generally form a cubical shaped product, and are an efficient machine in producing aggregates and generating fines.
Featuring a 4 rows blow bar balanced rotor assembly, these machines offer smooth operation.
Access to blow bar and impact plates is made easy by the hinged opening of the mainframe.
A hydraulic opening facility is included on the larger machines. The blow bars are reversible, and the product size can be controlled by adjusting the clearance between the blow bars and the impact racks.
| Model | Size of feed opening (mm x mm) | Max.feed size (mm) | Capacity (t/h) | Motor power (kw) | Weight (t) | Dimension (mm) |
| PF-1007 | 820 x 700 | 300 | 24-45 | 55 | 9.5 | 2400 x 1558 x 2660 |
| PF-1010 | 1170 x 720 | 300 | 50-80 | 75 | 10 | 2532 x 1985 x 2196 |
| PF-1210 | 1090 x 465 | 350 | 80-130 | 110 | 14 | 2638 x 2037 x 2713 |
| PF-1214 | 1440 x 465 | 350 | 100-160 | 132 | 18 | 2580 x 2400 x 2810 |
| PF-1315 | 1532 x 560 | 350 | 140-200 | 200 | 19.3 | 2840 x 2748 x 2556 |
| PF-1316 | 1690 x 859 | 350 | 150-220 | 200 | 19.5 | 3096 x 2850 x 2667 |
| PF-1515 | 1580 x 696 | 350 | 220-280 | 280 | 28.5 | 3553 x 2835 x 3277 |
| PF-1620 | 1240 x 2000 | 500 | 300-500 | 280 x 2 | 50 | 4000 x 3750 x 3950 |
| PF-1820 | 1500 x 2050 | 500 | 550-860 | 630 | 90 | 4260 x 3550 x 3640 |
