Flotation Separation Equipment

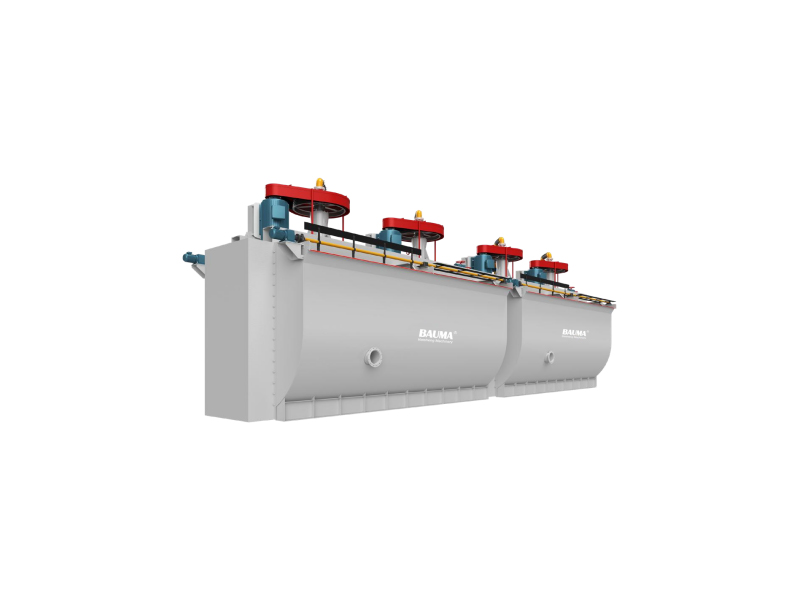

XCF/KYF Air-Inflation Mechanical Agitation Flotation Machine

As the impeller rotates, the slurry is drawn from the surrounding areas through the bottom of the tank and into the space between the impeller blades. Simultaneously, low-pressure air, provided by a blower, enters through the hollow shaft and air distributor within the impeller chamber. The slurry and air mix thoroughly between the impeller blades, and the resulting mixture is discharged upwards and outward from the upper portion of the impeller towards the surrounding stator. The stator stabilizes and directs the flow evenly across the tank. As bubbles rise to the froth stabilization zone, the valuable minerals attach to the bubbles, concentrating in the froth. The froth is then scraped off the top by a froth scraper into a collection trough. Meanwhile, a portion of the slurry is drawn back to the lower part of the impeller, where it is re-agitated, and more mineral-laden bubbles are formed. This process continues across multiple cells in the flotation circuit, with non-valuable minerals eventually becoming tailings and exiting the flotation system.

Send Inquiry Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
XCF/KYF Air-Inflation Mechanical Agitation Flotation Machine
//www.bscrusher.com/uploadfiles/38.60.157.215/webid2564/source/202609/8395317885007121.jpg
XCF/KYF Air-Inflation Mechanical Agitation Flotation Machine

Technical Parameters

ModelEffective Volume (m³)Processing Capacity (m³/min)Max Air Intake (m³/m².min)Blower Air Pressure (Kpa)Motor Power (kW)Dimensions (mm)Single Tank Weight (kg)
AgitationScraper
XCF-1 1 0.2-1 2 ≥12.6 5.5 0.75 1000×1000×1100 1154
KYF-1 4 903
XCF-2 2 0.4-2 2 ≥14.7 7.5 1.1 1300×1300×1230 1659
KYF-2 5.5 1419
XCF-4 4 1.2-4 2 ≥19.8 15 1.5 1800×1800×1500 2170
KYF-4 11 1920
XCF-8 8 3-8 2 ≥21.6 22 1.5 2200×2200×1950 4380
KYF-8 15 3885
XCF-10 10 4-10 2 ≥21.6 30 1.5 2370×2370×2100 4325
KYF-10 22 4010
XCF-16 16 4-16 2 ≥25.5 37 1.5 2800×2800×2400 6205
KYF-16 30 5705
XCF-20 20 4-20 2 ≥27 45 1.5 2920×2920×2730 7586
KYF-20 37 6667
XCF-24 24 4-24 2 ≥30.4 55 1.5 3100×3100×2900 9935
KYF-24 37 8265
XCF-30 30 7-30 2 ≥31.6 55 1.5 3500×3500×3025 12005
KYF-30 45 10455
XCF-38 38 10-38 2 ≥34.3 75 1.5 3600×3600×3400 13200
KYF-38 55 11566
XCF-40 40 10-40 2 ≥35 75 1.5 3800×3800×3400 13750
KYF-40 55 12116
XCF-50 50 10-40 2 ≥42 90 2.2 4200×4200×3600 14500
KYF-50 75 13800
