PFE impact crusher is widely applied in metallurgy, building materials, chemical industries.They are ideal for crushing medium hard brittle materials of coarse, secondary and fine crushing stages, such as limestone, dolomite, sandstone, graphite, rocksalt, granite and basalt. With high crushing ratio, unequaled output, uniform production size, compact process simple construction, easy operation and maintenance.

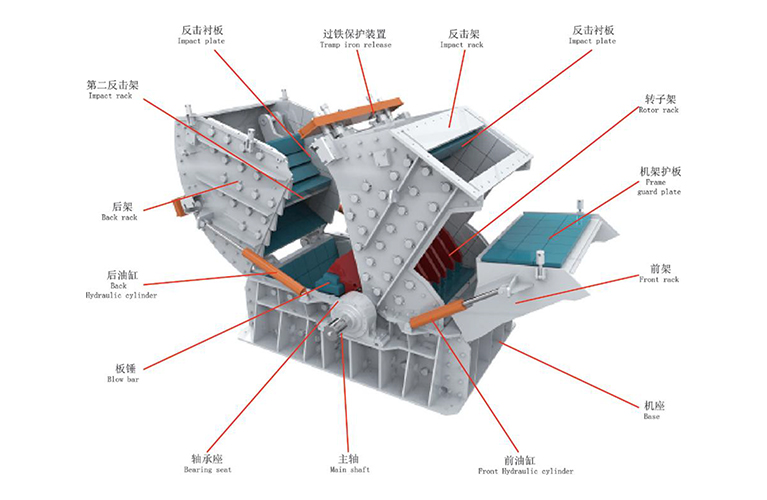

Baisheng PFE Impact Crusher features a heavy duty rotor design with an improved blow bar fixing method that provides a high reduction ratio.
The machine is fitted with a hydraulic opening facility to enable easy access to the wear parts for servicing. Product material size can be varied using the hydraulic adjustment system to reposition the discharge port settings.
The blow bars are reversible for longer life.
| Model | Rotor diameter (mm) | Rotor length (mm) | Max.feed size (mm) | Discharge size (mm) | Capacity (t/h) | Power (kw) | Weight (t) |
| PFE-1010 | 1000 | 1000 | 200 | ≤40 | 80-110 | 110 | 10 |
| PFE-1313 | 1280 | 1340 | 200 | ≤60 | 160-220 | 200 | 19.8 |
| PFE-1515 | 1540 | 1500 | 300 | ≤60 | 320-380 | 315 | 30 |
| PFE-1618 | 1600 | 1800 | 350 | ≤60 | 450-580 | 205×2 | 40.2 |
| PFE-1820 | 1800 | 2000 | 450 | ≤80 | 600-800 | 355×2 | 65 |
| PFE-2025 | 2000 | 2500 | 450 | ≤80 | 800-1200 | 500×2 | 81.2 |
