Baisheng wheel type series mobile crusher is developed according to novel series stone crushing equipment's design idea, which expands the concept field of coarse crushing and final crushing. Its design idea is based on the client's requirements, which clears faults of the crushing place, surroundings and the complex basic configurations. This series mobile crusher really supply simpler, higher efficient lower cost machines for clients.
High-performance jaw crusher, impact crusher or cone crusher, feeder, belt conveyor and vibrating screen are integrally mounted on the vehicle chassis.
Equipped with steerable traction axle for convenient highway transportation and access to job sites.
Vehicle-mounted support legs enable fast and easy on-site setup.
Complete with vehicle-mounted motors and control cabinet.
Flexible mobility and strong adaptability.
Reduce material transportation costs.

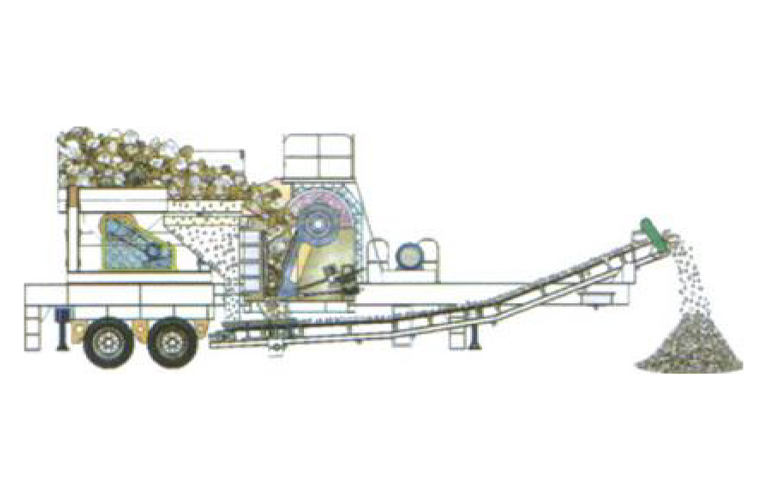

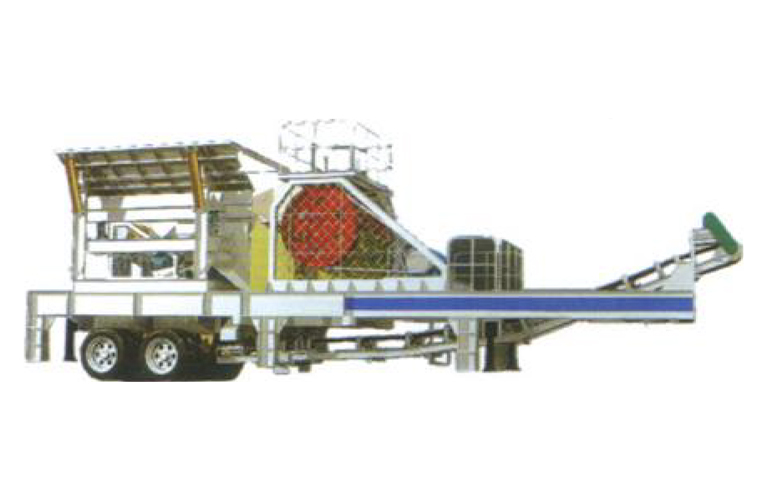

Mobile Jaw Crushing Plant
| Model | Feeder Model | Jaw crusher Model | Belt conveyor Model | Extended conveyor | Generator | Capacity (t/h) | Power (kw) | Overall Dimension (L×W×H) (mm) | Weight (t) |
| YG938E69 | ZSW-380×96 | PE600×900 | B650×7M | Optional | Optional | 70-150t/h | 91.5kw | 13200×2900×4700 | 42 |
| YG1142E710 | ZSW-420×110 | PE750×1060 | B800×9M | Optional | Optional | 80-200t/h | 134kw | 15000×3100×5100 | 55 |
| YG1349E912 | ZSW-490×130 | PE900×1200 | B1000×11M | Optional | Optional | 150-300t/h | 146kw | 17000×3300×5600 | 72 |
Note: Capacity is according to limestone as raw materials.

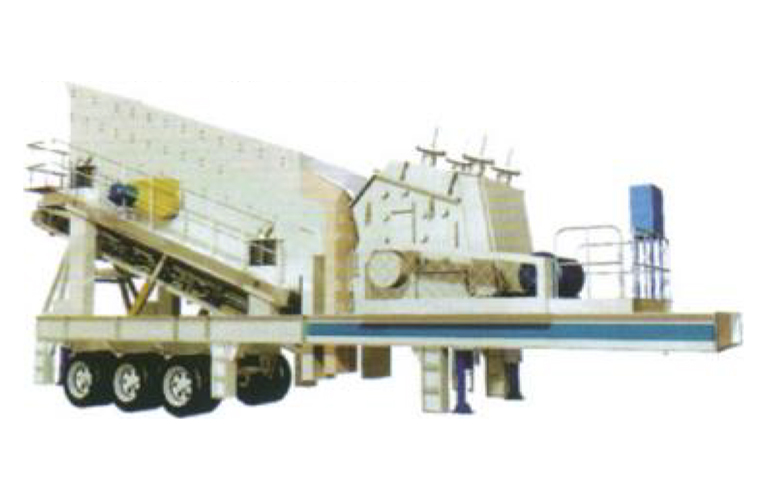

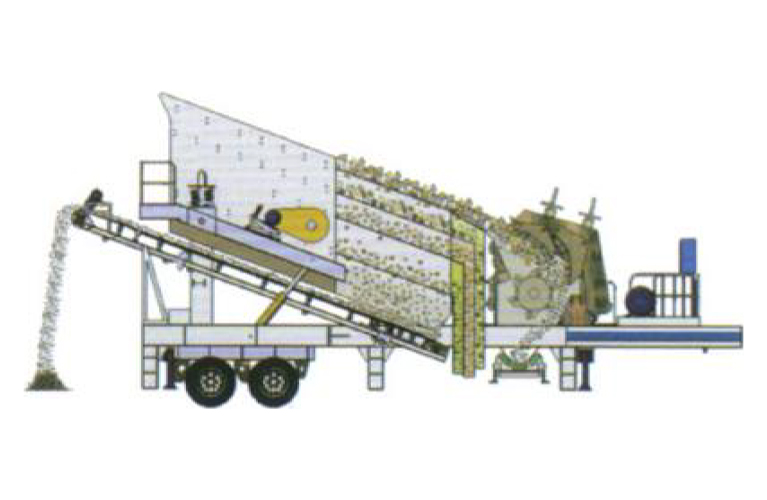

Mobile Impact Crushing Plant
| Model | Vibrating screen | Impact crusher | Belt conveyor | Generator | Capacity (t/h) | Power (kw) | Overall Dimension (L×W×H) (mm) | Weight (t) |
| Y3S1548F1010 | 3YK1548 | PF1010 | B500×7M | Optional | 30-275 | 70-90 | 12500×2800×6000 | 42 |
| Y3S1848F1210 | 3YK1848 | PF1210 | B650×7M | Optional | 56-330 | 128.5-150.5 | 12500×3000×6500 | 46 |
| Y3S1860F1214 | 3YK1860 | PF1214 | B650×8M | Optional | 65-586 | 154-190 | 13500×3000×6500 | 51 |
| Y3S2160F1315 | 3YK2160 | PF1315 | B800×8M | Optional | 81-720 | 210-297 | 14000×3200×6800 | 57 |
Note: Capacity is according to limestone as raw materials.

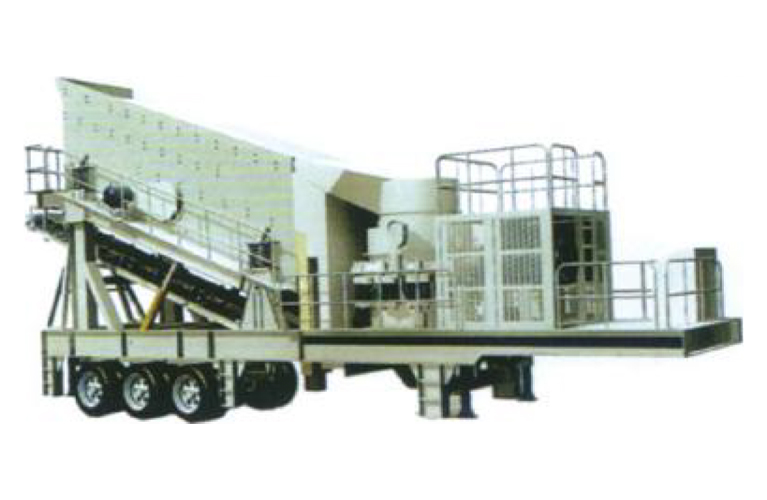

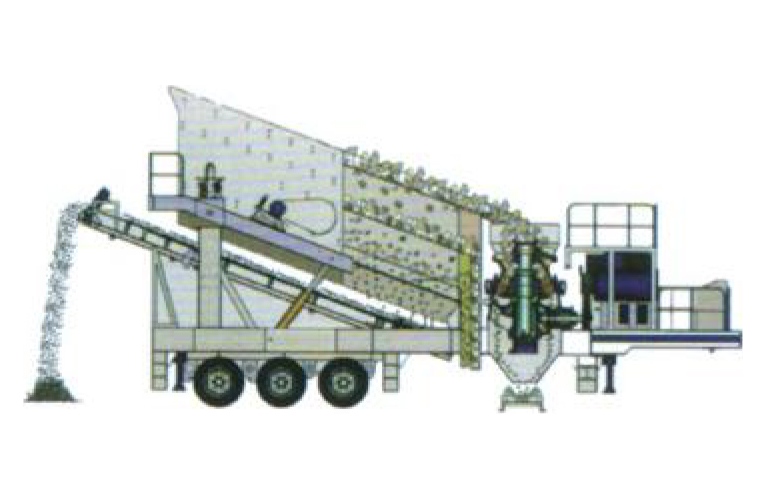

Mobile Cone Crushing Plant
| Model | Vibrating screen | Cone crusher | Belt conveyor | Generator | Capacity (t/h) | Power (kw) | Overall Dimension (L×W×H) (mm) | Weight (t) |
| Y3S1548Y90 | 3YK1548 | PYB900 | B500×7M | Optional | 50-90 | 75 | 13000×2800×6400 | 43 |
| Y3S1848F90 | 3YK1848 | 3' | B650×7M | Optional | 65-130 | 99-134 | 13000×3000×6700 | 47 |
| Y3S1860F130 | 3YK1860 | 4 1/4' | B650×8M | Optional | 110-455 | 212.5-220.5 | 14000×3000×6700 | 53 |
| Y3S2160F160 | 3YK2160 | 5 1/2' | B800×8M | Optional | 140-330 | 257.5-264.5 | 14000×3200×6700 | 58 |
Note: Capacity is according to limestone as raw materials.
